Members' Rigs

Robert "MAC" Maclay

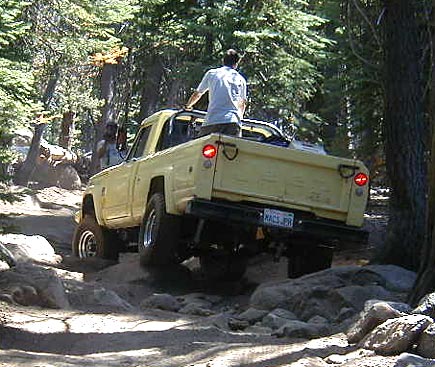

70 J-3000 Gladiator Townside


Specs:

Pickup Model J-3600, S/N 3406X19 303255.

  • 126" Wheelbase, 6000 GVW.
  • Rebuilt Buick 350v8, .020 Bored, August 2002.
  • Rochester 2 BBL Carburetor, Pertronics Ignition.
  • TA Performance RV-12 Camshaft, Hydraulic Lifters, Dual Timing Chain, Oil High Volume/Pressure Pump Kit (Recommended) Kenne-Bell Grooved Main Bearings.
  • Warner T-18 4-Spd Transmission 6.324:1 (1st), 3.092:1 (2nd), 1.686:1 (3rd), 1:1 (4th), 7.439:1 (Reverse).
  • Dana-Spicer 20 Transfercase, 2.03:1 (Low) with Transmission Brake Only
  • Dana 44-1F, 5 on 5.5, Closed-knuckle, 4.09:1 Front-end Dana 60-2, 5 on 5.5, Semi-Float, Power-Loc Limited Slip, 4.10:1 Rear-end "Originally Dana 53, 5 on 5.5, Semi-Float, 4.09:1 Rear-end" Manual Brakes, 12" x 2" Drums (Rear), 11" x 2" Drums (Front).
  • Power Steering
  • In-Dash Air Conditioning Fan/Condensor X-Wag A/C Compressor converted to On-Board Air with Under-Bed Air Tank
  • Sliding Rear Window (Tinted)
  • Delta In-Bed Tool Box
  • 2" Diameter Truck-Bed Rollbar
  • 3" Body Lift,
  • Performance Accessories 2-3" Suspension Lift, Sacramento Springs Co.
  • Custom 4-Core Radiator, Beko Radiator Mfg. Co. (Concord, CA)
  • Flowmaster Single Exhaust System
  • Custom Hand Parking-Brake System
  • Custom Fog Light system (Inboard of Headlights)

Future Upgrades:

  • Install PTO Winch
  • Restore A/C system from a '68-'71 Wagoneer w/350v8 "Need Hoses, Drier/Receiver, and Condensor with Brackets"
  • Install Power Brakes
  • Install EFI/ TBI
  • Intake Manifold
  • Extra Fuel Tank
  • Repaint Truck "Prairie Gold"
  • Line-X Truck Bed
